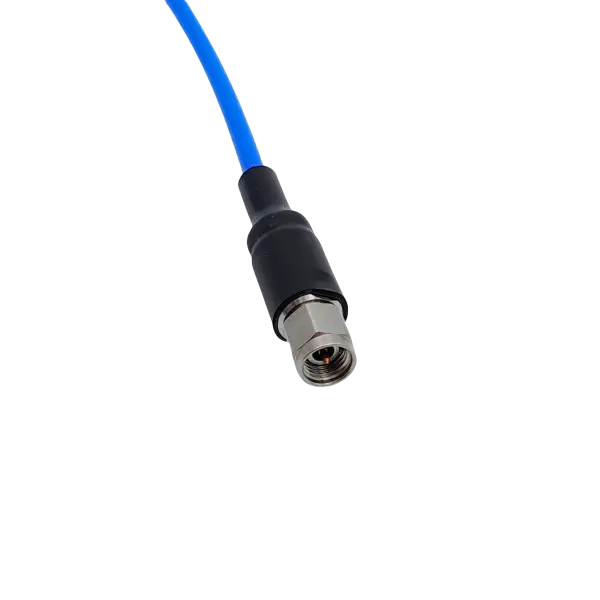

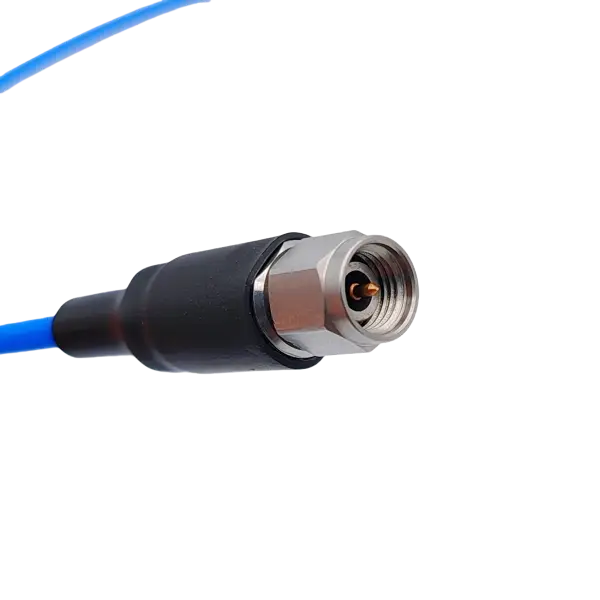

    33P4 testing series

    40GHz test cable assembly

    1.Excellent anti-interference, acid and alkali resistant shielding performance.
    2.High-performance amplitude and phase stabilization cable.
    3.Low loss and bending resistance.
    4.Aluminum foil interlayer significantly extends service life.


    FEP has good water-proof, moisture-proof and water-blocking properties. It is water-proof, airtight, soft, high-temperature resistant and highly elastic.
    Inquire Now WhatsApp
    • Product details
    • Download

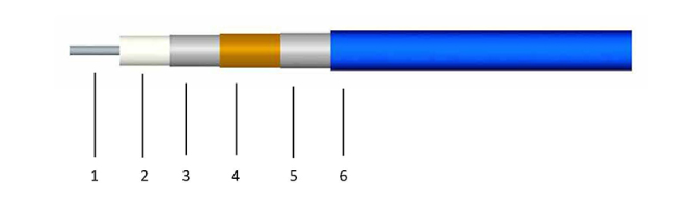

    Construction

    • Inner Conductor: ① Silver Plated Copper, 0.72mm±0.02
    • Dielectric: ② PTFE, 2.21mm
    • Outer Conductor: ③ Silver Plated Copper Braid, 2.40mm
    • Interlayer: ④ PTFE, 2.69±0.05
    • Braiding: ⑤ Silver Plated Copper Braid, 3.15±0.05
    • Jacket: ⑥ FEP, Light Blue, 3.6±0.10

    Electrical Data

    • Impedance: 50 ohm
    • Max. operating frequency: 50 GHz
    • Velocity of signal propagation: 76%
    • Shielding effectiveness: >90dB(@1GHz)
    • Max. operating voltage: 1500V

    Mechanical Data

    • Weight: 41g/m
    • Min. bending radius:
      • static: 18mm
      • dynamic: 36mm

    衰减和连续波功率

    Frequency (GHz)Attenuation (dB/100m)CW Power (W)
    148.10502.92
    383.86288.43
    5108.76222.40
    7129.16187.26
    9146.93164.63
    11162.90148.49
    13177.54136.24
    15191.17126.53
    17203.97118.59
    19216.09111.94
    21227.63106.26
    23238.67101.35
    25249.2897.03
    27259.5193.21
    29269.3989.79
    31278.9786.70
    33288.2883.90
    35297.3381.35
    37306.1679.01
    39314.7776.84
    40319.0075.82
    43331.4272.98
    45339.4871.25
    47347.3969.63
    49355.1568.11
    50358.9867.38
